VOOPOO Black Drag Resin 157W TC Box MOD
VOOPOO Black Drag Resin Product introduction
The VOOPOO Black Drag Resin is very popular among vapers. Now the VOOPOO Black Drag Resin is coming, which has a black Zinc Alloy frame with colorful resin panel. Powered by the 32-bit super US GENE.FAN chip, the DRAG can bring what you have always wanted – max 157W output power, powerful temperature control of Ni, Ti and SS coils, super mode and the fastest fire speed ever at 0.025s. You can always keep the mod up-to-date with upgradeable firmware too so you will never miss anything new.
VOOPOO Black Drag Resin Parameters

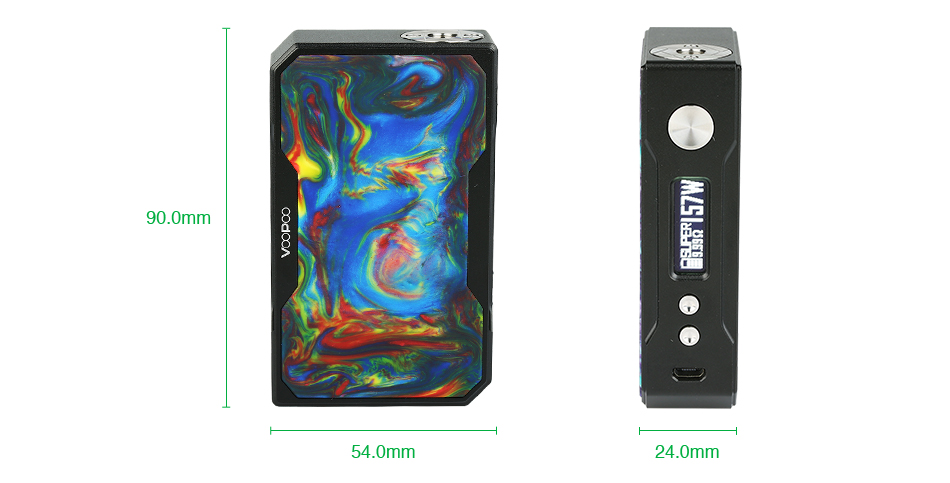

Size: 90 x 54 x 24mm
Chip: US GENE.FAN chip
Working Voltage: 6.4-8.5V
Working Current: 1-40A
Output Voltage Range: 0-7.5V
Output Current Range: 0-40A
Resistance range: 0.05-3.0 (VW)/0.05-1.5 (TC)
Output Power: 5-157W
Color: Azure/Jade/Purple Jade/Rainbow/Turquoise

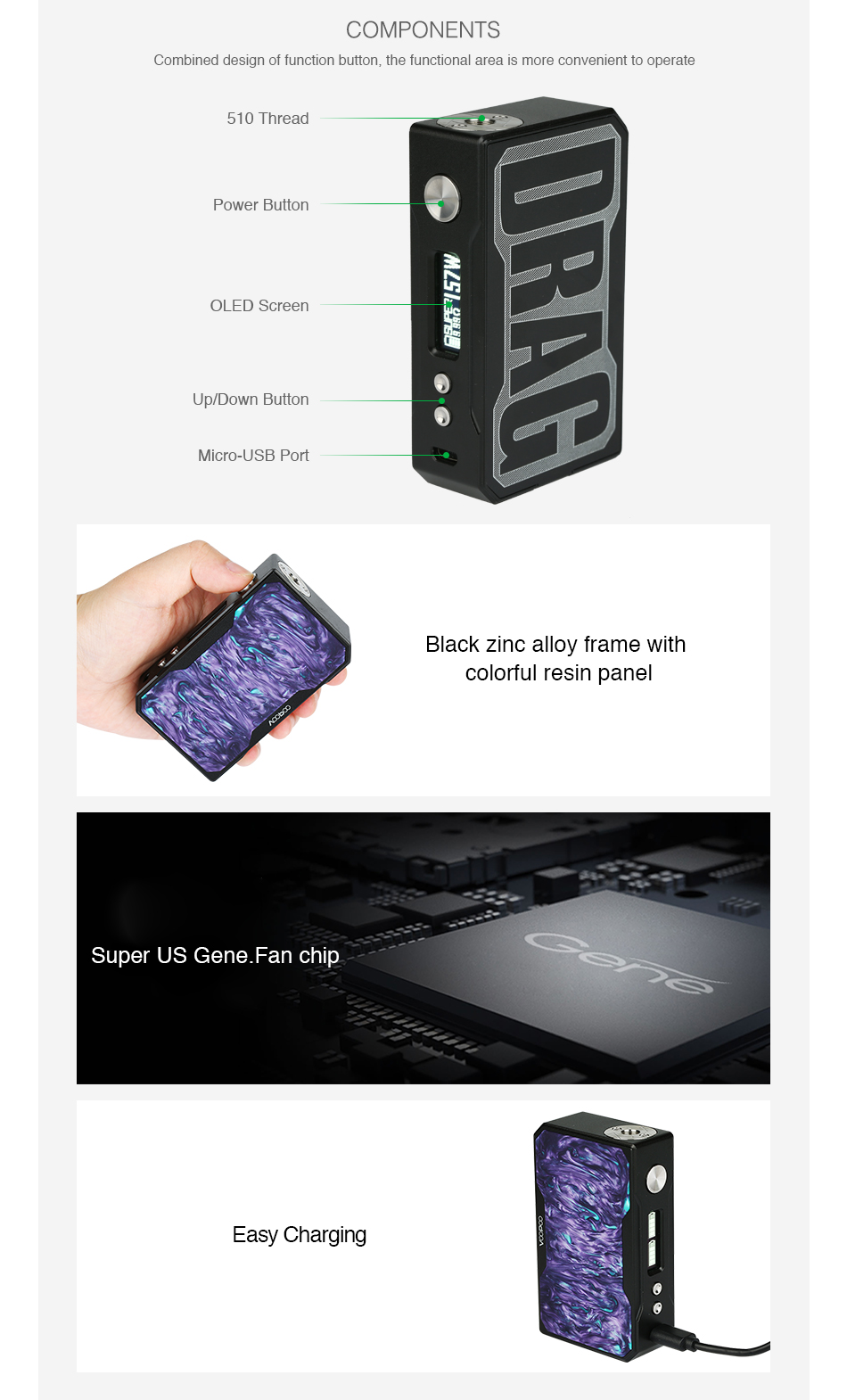

Black zinc alloy frame with colorful resin panel
The fastest firing time – 0.025s
Super US Gene.Fan chip
Max 157W output power
Innovative super mode
Power on/off: Press the fire button 5 times in quick succession to turn the device on and off.
Mode Switch: Press the fire button 3 times quickly, the four interfaces can be switched orderly under normal startup condition. Constant power and temperature control SS/Ni/Ti.
Temperature Adjustment: When the temperature was set to 100℃, keep on pressing the down button, temperature will turn to 600F. When the temperature was set to 200°F, keep on pressing the down button, temperature will turn to 315℃. Quickly press the fire button 4 times can get into wattage adjust interface. Then you will see the letter “W” is flashing. The adjustable wattage is 5W to 80W.
Function Menu: Press uo and down buttons simultaneously for 1.5 seconds, enter the function menu interface. Press up button or down button simultaneously to choose th function. Press the fire button to make confirmation and go to next step.
Customization Mode: Press up and down buttons simultaneously for 1.5 seconds, the device will go to the function menu interface. Press up and down button to choose the Customization Mode and press fire button to go into Customization Mode interface. Under Customization Mode, press fire button 3 times continuously, 4 kinds of Customization Mode can be switched sequentially: Stable Power Mode, Temperature Control Mode:TC-SS316/TC-Ni200/TC-Ti.
Sleep Mode: If there is no operation for 30 seconds, screen will turn off. No operation for 30 minutes after the screen off, the device will enter sleep mode.
VOOPOO Black Drag Resin comes with
- VOOPOO DRAG MOD
- USB Cable
- User Manual
- Warranty card
